The P175 FM Broadcast Analyzer is a stand-alone low-cost solution for FM broadcast analysis. It provides complete FM modulation and basic AF spectrum measurements in FM radio band through the antenna input. Built-in LCD display and control interface allows to measure and collect data in terrain without need of any PC computer.
This kind of analyzer is an essential equipment for all FM radio stations to ensure compliance with basic technical broadcast standards and to accomplish the highest audio quality possible.

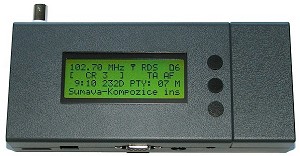

P175 FM Broadcast Analyzer

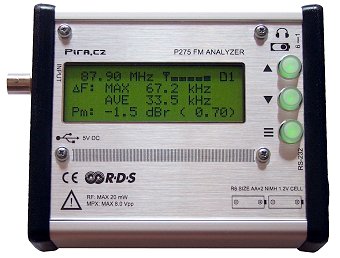

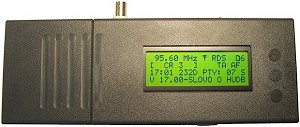

P175 FM Analyzer in Box

| Direct buy |

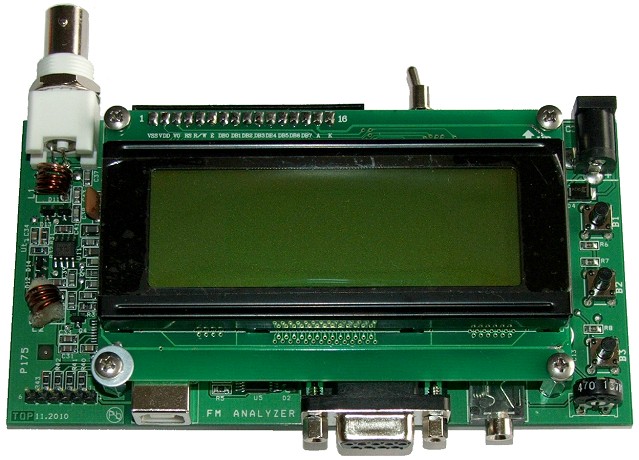

P175 FM Analyzer Module - Fixed LCD

| Direct buy |

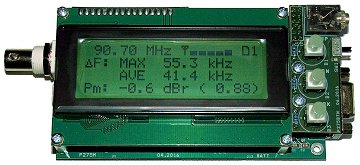

P175 FM Analyzer Module - Flexible LCD

| Direct buy |



Actual news:

  • Availability note: The P175 has been originally developed for small radio stations, however we are seeing exceptional demand in other portions of the market, which is growing sequentially. The success of the P175 has caught us by surprise. As a result, the P175 lead times have stretched out and we are capacity constrained in our assembly and test operations, and also limited by our suppliers lead times. The P175 lead times are currently between 1 and 8 weeks, depending on quantity. We are receiving orders almost daily where delivery is being requested in as little as 2 days. Therefore, we are requesting that you check actual availability in our shop and place your order as soon as the system accepts it so that we can best match your needs to the remaining capacity. Thank you for your business. (26.9.2014)
  • New firmware & software version available - 1.4 rev. 3 (6.6.2013)
  • FM Guard monitoring utility added (3.3.2012)
  • New revision of the device introduced - P175 (16.6.2011)
  • Real-time Windows RDS decoder available for the device: http://rdsspy.com (21.11.2010)
  • P175 in action: http://pira.cz/monitor/?lang=eng

Main highlights:
  • Designed for small FM stations
  • Stand-alone design, completely DSP based from IF to outputs
  • Compliant with CEPT/ERC REC 54-01 E
  • Dual-conversion receiver
  • Built-in LCD display, USB and RS-232 interface
  • Alarm outputs
  • Firmware updates for free
  • Easy to use
Measurements:
  • Overall frequency deviation incl. histogram
  • Modulation power
  • Baseband FFT
  • Pilot and RDS deviation
  • Pilot-to-RDS phase difference
  • FM carrier frequency difference
  • Stereo balance meter
  • RDS/RBDS decoder

PIRA75

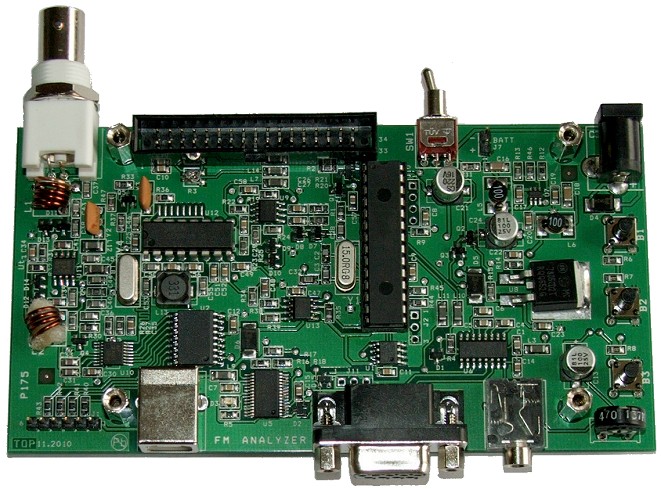

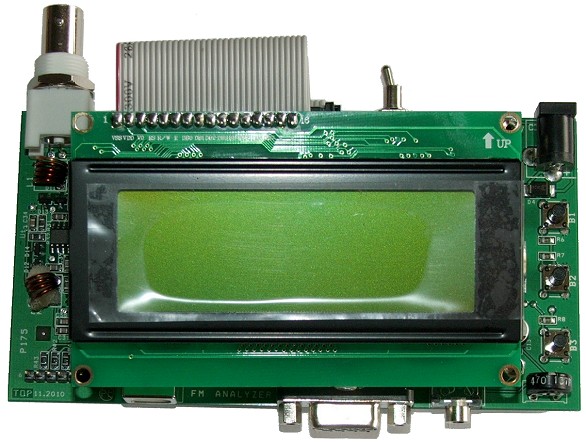

The P175 mainboard.

Quick technical data:

Power supply 8-12 V DC or NiMH accu or USB
CPU 120 MHz RISC DSP
Antenna connector BNC, 50 Ohms
Frequency range 87.5-108.0 MHz
RF sensitivity (26 dB S/N) 4 uV
RF sensitivity (full measurements) 70 uV
Board dimensions 133 x 70 mm
Certification CE (EN 55013)

Find complete technical data in the pdf manual.

Documents


Did you know...?
  • If you adjust the modulation level using only your ears, the real frequency deviation can easily reach more than 30 % over the limit.
  • Overmodulation increases the FM band spectrum pollution and audio distortion. An inspection may fine for it by a considerable amount of money.
  • If you adjust the pilot tone level only using a rule of thumb, you may cause unavailing troubles to your listeners.
  • The P175 is one of the few FM analysis equipments on the world that allows direct measurement of pilot-to-RDS phase difference.
  • Not all commercially available audio limiters and other parts of the broadcast chain ensure no overmodulation and overshooting. You may believe and trust but the FM analyzer will show it exactly.
