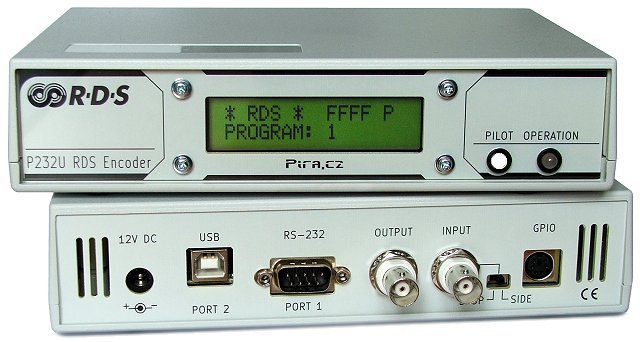

The P232U RDS Encoder is well suited
for the vast majority of radio stations which use serial data channel (PC serial port,
satellite link, serial over Ethernet) for the RDS content distribution. An independent USB
communication port provides a simple way for local connection and configuration. The RDS
encoder supports both dynamic and static operation. The device is equipped with standard
analogue interface for seamless integration into the broadcast chain and
interchangeability with other brand products.
Some features are unique: output data monitoring down to the bit level, direct conversion of XML tagging data to Radiotext Plus, port multiplication thru Windows control software and several others. Due to support of additional RDS2 data-stream, the P232U is future-proof equipment, ready for possible enhancements of the FM broadcasting.
This RDS encoder is characterized by
proven concept, easy installation, great price and unsurpassed text processing
capabilities. It maintains support for all RDS services and data formats that are commonly
used. The device is compatible with P132, P164 and backward compatible with
PIRA32.
- Fully dynamic FM broadcast RDS encoder with two
independent communication ports
- Optically isolated RS-232 port, USB port
- Control interface accepts ASCII commands, UECP
protocol and X-Command
- Text features include dynamic PS, parsing, scrolling,
tagging, fixed messages and scheduling
- Excellent compatibility with broadcast automation
systems
- External TA and Program set switch, bypass relay,
switchable MPX loopthrough mode (Loop/Side)
- Internal real-time clock
- Supports separate data channel for station logo *)
- Two switchable subcarrier configurations (RDS or
RDS2)
- Easy and fast set-up
| RDS
services directly supported by the unit |
| |
|
|
|
| PI |
Program Identification |
RT |
Radiotext |
| PS |
Program Service name |
RT+ |
Radiotext Plus |
| PTY |
Program Type |
M/S |
Music/Speech |
| TP |
Traffic Program |
CT |
Clock-Time and Date |
| TA |
Traffic Announcement |
IH |
In-House Applications |
| AF |
Alternative Frequencies |
ECC |
Extended Country Code |
| PTYN |
Program Type Name |
LIC |
Language Identification Code |
| DI |
Decoder Identification |
TMC |
Traffic Message Channel |
| EON |
Enhanced Other Networks
information |
ODA |
Open Data Applications |
| LPS |
Long PS name |
RDS2 |
Station logo and other features |
(The RDS services are described in Support)
| Supply voltage and current: |
12 V DC stabilized, 250 mA |
| RDS/RBDS signal: |
conforms to CENELEC EN 50067 / EN
62106 |
| Output level of RDS: |
adjustable from 0.0 to 4.0 V p-p in
256 steps |
| RDS signal bandwidth: |
+/- 2.4 kHz (50 dBc) |
| MPX leadthrough voltage gain: |
1 (guaranteed from 2 Hz to 100 kHz) |
| 19 kHz pilot PLL capture range: |
+/- 4 Hz |
| Pilot tone level: |
min. 120 mV p-p |
| Phase shift adjust: |
full range in 9.5 degrees steps |
| Signal connectors: |
unbalanced, BNC |
| Data connectors: |
RS-232 9-pin male (DTE), USB B-type |
| Other connectors and indicators: |
TA and Program switch, front panel
LCD, pilot and operation LED |
| Program sets: |
6 |
| UECP protocol support: |
PI, PS, TA/TP, DI, MS, PTY, RT,
X-Command, TMC, AF, 0D, 1C, 24, 40, 42 ** |
| ASCII protocol support: |
Yes |
| Case: |
Compact, 190x150x45 mm, gray or black
ABS |
| Recommended power supply: |
Wall mount adapter 12V/1A DC,
2.1x5.5mm barrel plug (+) inside |
