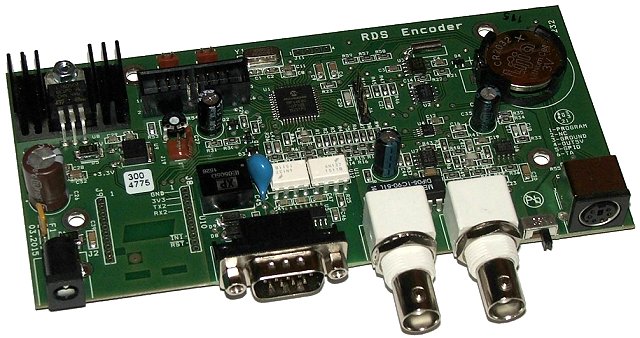

The P232 RDS Encoder is well suited for
many radio stations which use serial RS-232 channel for dynamic RDS data distribution or
which settle for static RDS content. It's also highly suitable for service and
development purposes. Fully DSP concept and effective design ensures high reliability,
excellent signal characteristics and gives the user many advanced features.
This RDS encoder is characterized by
easy installation and great price. It still maintains
support for all RDS services and data formats that can be found in other models. The
device is compatible with P132, P232U, P332 and backward
compatible with PIRA32.
- Fully dynamic FM broadcast RDS encoder with single
RS-232 communication port
- Independent secondary communication port on-board
- Control interface accepts ASCII commands, UECP
protocol and X-Command on both ports
- Text features include dynamic PS, parsing, scrolling,
tagging, fixed messages and scheduling
- Control software includes powerful Windows GUI
application
- External TA and Program set switch, bypass relay,
switchable MPX loopthrough mode (Loop/Side)
- Internal real-time clock
- Supports separate data channel for station logo *)
- Two switchable subcarrier configurations (RDS or RDS2)
- Easy and fast set-up
| RDS
services directly supported by the unit |
| |
|
|
|
| PI |
Program Identification |
RT |
Radiotext |
| PS |
Program Service name |
RT+ |
Radiotext Plus |
| PTY |
Program Type |
M/S |
Music/Speech |
| TP |
Traffic Program |
CT |
Clock-Time and Date |
| TA |
Traffic Announcement |
UDG |
User Defined Groups |
| AF |
Alternative Frequencies |
ECC |
Extended Country Code |
| PTYN |
Program Type Name |
LIC |
Language Identification Code |
| DI |
Decoder Identification |
TMC |
Traffic Message Channel |
| EON |
Enhanced Other Networks
information |
ODA |
Open Data Applications |
| LPS |
Long PS name |
RDS2 |
Station logo and other features |
(The RDS services are described in Support)
| Supply voltage and current: |
12 V DC stabilized, 120 mA |
| RDS/RBDS signal: |
conforms to CENELEC EN 50067 / IEC
62106 |
| Output level of RDS: |
adjustable from 0.0 to 4.0 V p-p in
256 steps |
| RDS signal bandwidth: |
+/- 2.4 kHz (50 dBc) |
| MPX leadthrough voltage gain: |
1 (guaranteed from 2 Hz to 100 kHz) |
| 19 kHz pilot PLL capture range: |
+/- 4 Hz |
| Pilot tone level: |
min. 120 mV p-p |
| Phase shift adjust: |
full range in 9.5 degrees steps |
| Signal connectors: |
unbalanced, BNC |
| Data connectors: |
RS-232 9-pin male (DTE), secondary
RS-232 on board (3V3 logic) |
| Other connectors and indicators: |
TA and Program switch, LCD (optional),
pre-wired pilot and operation LED |
| Program sets: |
6 |
| Recommended power supply: |
Wall mount adapter 12V/1A DC,
2.1x5.5mm barrel plug (+) inside |
* Current receivers may not fully support the RDS2.
Contact us for I/O connector assembly options.
|
