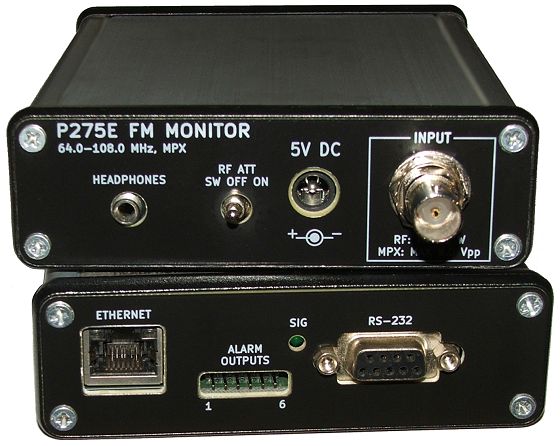

P275E FM Monitor
The P275E FM Monitor forms a quick and economic solution for remote FM broadcast monitoring and measurements. It is especially suitable for broadcasting locations where direct listening and monitoring of the signal is not possible due to the great distance or where the Ethernet connection is desirable.
The device extends the original P275's capabilities with direct Ethernet communication and adds some other useful features:
- Remote control and access to the values via TCP connection or integrated HTTP server
- Configurable 5V logic outputs can be activated in case of alarm condition or can be used for remote reset of any device in the broadcast chain
- The aluminium case provides excellent shielding in strong RF signal environment
- Switchable attenuator extends the input power range up to 1W
The device fully supports the FM Scope and RDS Spy software for Windows.
Main highlights
- Built-in P275 FM Analyzer module
- Built-in Lantronix XPORT Ethernet module for remote connection
- Up to four digital outputs with remote control ability
- Switchable attenuator with remote control ability
Download
Quick reference data
| Power supply |
5 V DC (2.1/5.5 mm), wall power adapter included |
| Signal input |
BNC, 50 Ohms |
| Attenuator |
switchable 0 or 20 dB |
| Device dimensions (max.) |
144 x 105 x 37 mm |
| Max. TCP clients |
1 |
| Remote audio listening |
Yes (ADPCM 82.5 kbps 1-ch) |
| Embedded websites |
LAN Setup, Measurements |
| Output data formats |
ASCII, JSON, HTTP |
