P275 FM Broadcast Analyzer
The P275 FM Broadcast Analyzer is a stand-alone compact solution for FM broadcast analysis. It provides complete FM modulation and basic AF spectrum measurements in FM radio band through the combined antenna and MPX input.
Built-in OLED display and control interface allows to measure and collect data directly in field without need of any PC computer. USB interface and the control software provide a possibility of remote control, data viewing and automated data logging.
This kind of analyzer is essential equipment for all FM radio stations to ensure compliance with basic technical broadcast standards and to accomplish the highest audio quality possible.
Typical applications include: FM broadcast equipment setup and maintenance, verification of compliance with related technical standards as well as diagnostics, repairing and development.
Main highlights
- Stand-alone design, completely DSP based from IF to outputs
- Compliant with CEPT/ERC REC 54-01 E and ITU-R SM.1268
- Frequency range 76 to 108 MHz (64 to 108 MHz with reduced sensitivity)
- Accepts also baseband MPX

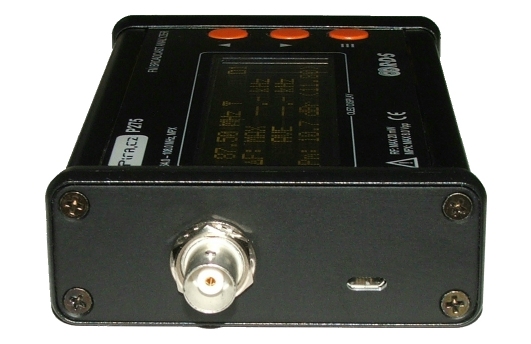

- Combined RF and MPX input via industry standard BNC connector

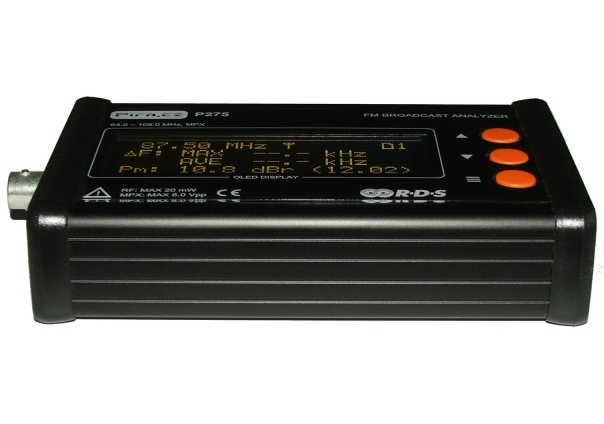

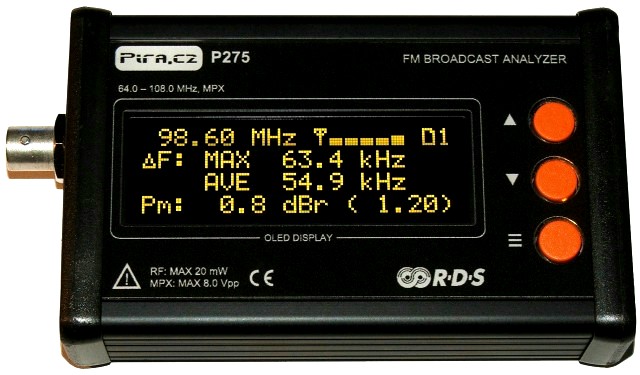

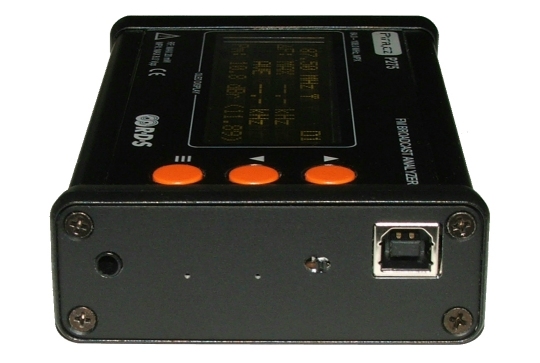

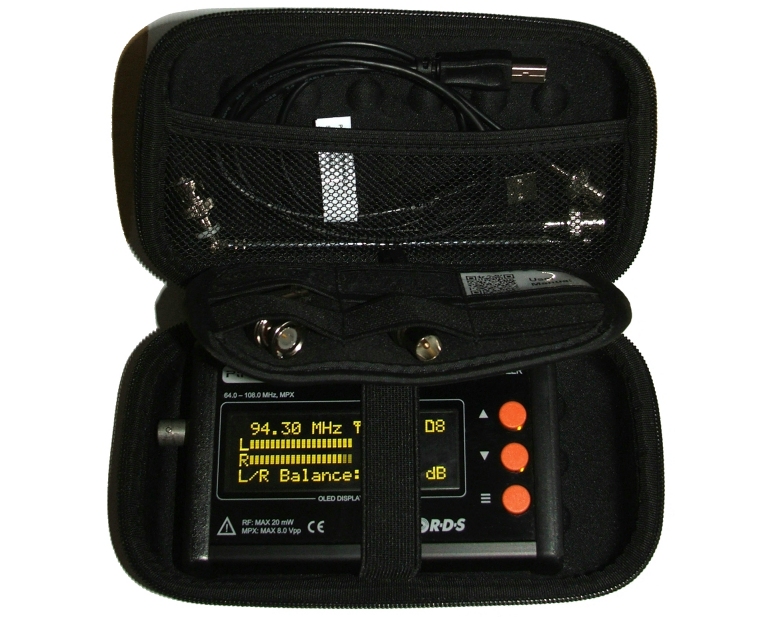

- Aluminum case, built-in OLED display and USB interface
- Pocket size, built-in replaceable LiPo cell
- Easy and fast to use
Measurements, indications and outputs
- Overall frequency deviation incl. histogram
- Modulation power (MPX power)
- Baseband spectrum FFT
- Pilot deviation, RDS deviation
- Pilot-to-RDS phase difference
- FM carrier frequency offset
- Reception quality and signal strength
- Stereo balance meter
- MPX peak to peak voltage
- RDS/RBDS decoder and analyzer
Download
Quick reference data
| Power supply | USB 5 V DC or internal battery |
| CPU | 70 MIPS DSP |
| Signal input | BNC, 50 Ohms |
| RF sensitivity (26 dB S/N) | 4 uV |
| RF sensitivity (full measurements) | 70 uV |
| Device dimensions | 12.5 x 8 x 3 cm |
| Device weight | 280 g netto |
| EMC standards | EN 61326-1, EN 55011 |
| Shielding effectiveness at 100 MHz | 90 dB (dipole vs. no antenna) |
For the purposes of permanent installation, please consider the P275R or P275E.
