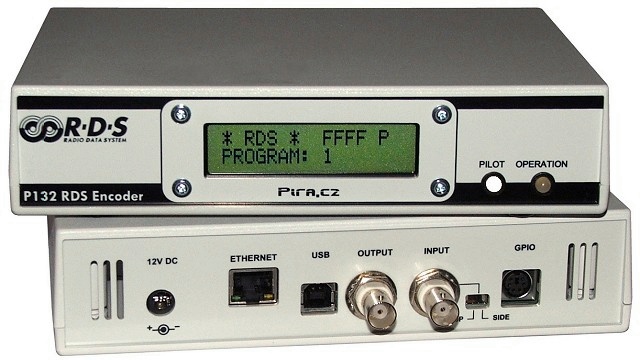

P132 RDS Encoder

The P132 RDS Encoder is a result of more than 10 years experience collecting and meets requirements of most regional, local, RSL, LPFM and other medium- and small-coverage radio stations. Fully digital concept and uniquely effective design ensures high reliability, excellent signal characteristics and gives the user many advanced features while maintaining low acquisition costs. Built-in Ethernet controller supports multiple TCP/UPD ports, internet functions and remote monitoring. The device is compatible with P332 and backward compatible with PIRA32.

Features
  • Fully dynamic FM broadcast RDS encoder with up to four independent communication ports
  • USB connectivity for local settings and maintenance purposes
  • Ethernet connectivity for linking with broadcast automation system
  • Supports internet functions and remote monitoring
  • Control interface based on ASCII commands and UECP protocol on all ports
  • Excellent compatibility with broadcast automation systems
  • Built-in weekly scheduling
  • Text features include dynamic PS, parsing, scrolling, fixed messages, scheduling and reading from HTTP
  • Supports control from external PHP/ASP scripts
  • External TA and Program set switch, bypass relay, switchable MPX loopthrough mode (Loop/Side)
  • Internal real-time clock incl. update from internet
  • Control software includes powerful Windows GUI application
  • Easy and fast set-up
  • Firmware updates are free
RDS services directly supported by the unit

PI Program Identification M/S  Music/Speech
PS Program Service PIN Program-Item Number
PTY Program Type ECC  Extended Country Code
TP Traffic Program RT Radiotext
AF Alternative Frequencies    TDC Transparent Data Channels
TA Traffic Announcement IH In House Applications
PTYN  Program Type Name ODA Open Data Applications
DI Decoder Identification CT Clock-Time and Date
EON Enhanced Other Networks information   LIC Language Identification Code
RT+ Radiotext Plus TMC Traffic Message Channel

(The RDS services are described in Support)

Download


Technical specifications

Supply voltage and current: 12 V DC stabilized, 280 mA
RDS/RBDS signal: conforms to CENELEC EN 50067 / EN 62106
Output level of RDS: adjustable from 0.0 to 4.0 V p-p in 256 steps
RDS signal bandwidth: +/- 2.4 kHz (50 dBc)
MPX leadthrough voltage gain: 1 (guaranteed from 2 Hz to 100 kHz)
19 kHz pilot PLL capture range:  +/- 4 Hz
Pilot tone level: min. 120 mV p-p
Phase shift adjust: full range in 9.5 degrees steps
Signal connectors: unbalanced, BNC
Data connectors: USB (standard B socket), Ethernet RJ-45
Other connectors and indicators:  TA and Program switch, front panel LCD, pilot and operation LED, Ethernet status LED
Network protocols: TCP, UDP, HTTP (server), HTTP (client), DHCP, DNS, SNTP, SNMP
Program sets: 2
UECP protocol support: Partial *
ASCII protocol support: Yes
Communication ports total: 4 ports (one USB, two TCP/UDP, one HTTP)
Case: Compact, 190x150x45 mm, gray ABS
Recommended power supply: Wall mount adapter 12V/1A DC, 2.1x5.5mm barrel plug (+) inside

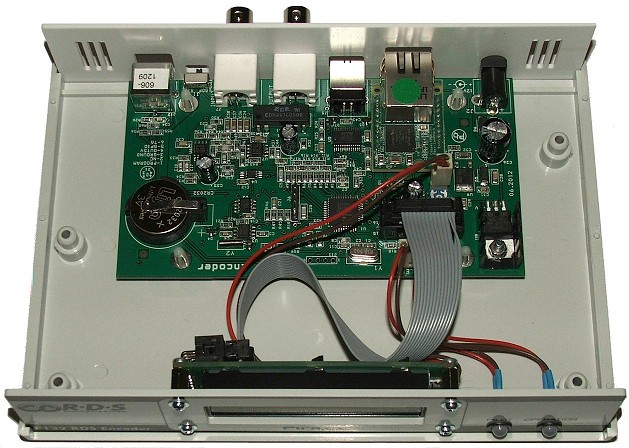

Click to enlarge* Follow the Technical manual for details.
