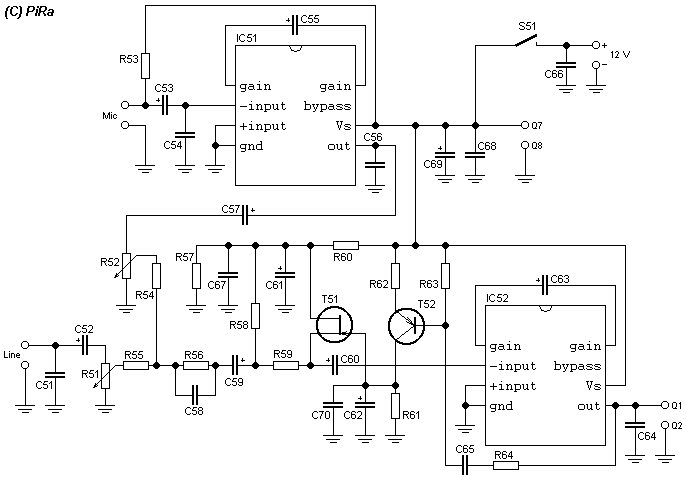

Audio and power supply part


Resistors:
R51, R52 - pot. 5 k
R53, R58, R64 - 10 k
R54, R55 - 22 k
R56 - 56 k
R57 - 1,5 k
R59 - 180 k
R60 - 820
R61 - 10 M
R62 - 47
R63 - 240 k

Capacitors:
C51, C54 - 100 pF
C52, C57 - 2,2 uF
C53 - 1 uF
C55, C62, C63 - 10 uF
C56, C64 - 47 nF
C58 - 1 nF plastic
C59, C60 - 1 uF tantal 25 V
C61 - 100 uF
C65 - 150 nF
C66, C67, C68, C70 - 10 nF
C69 - 470 uF

Misc:
T51 - BF245C
T52 - BC556B
IC51, IC52 - LM386
S51 - switch
