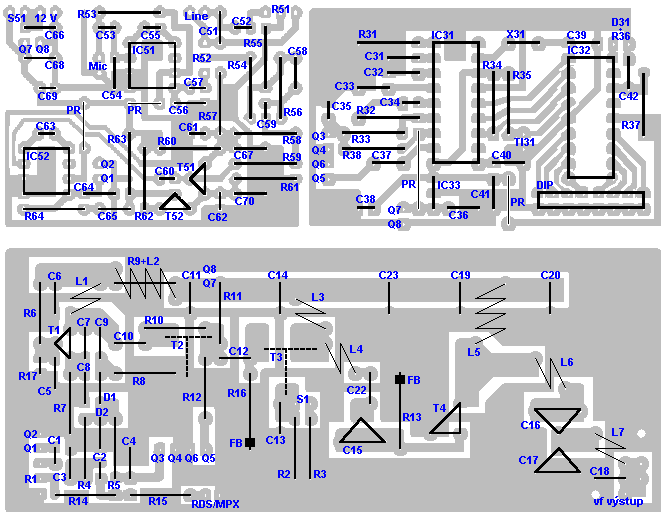

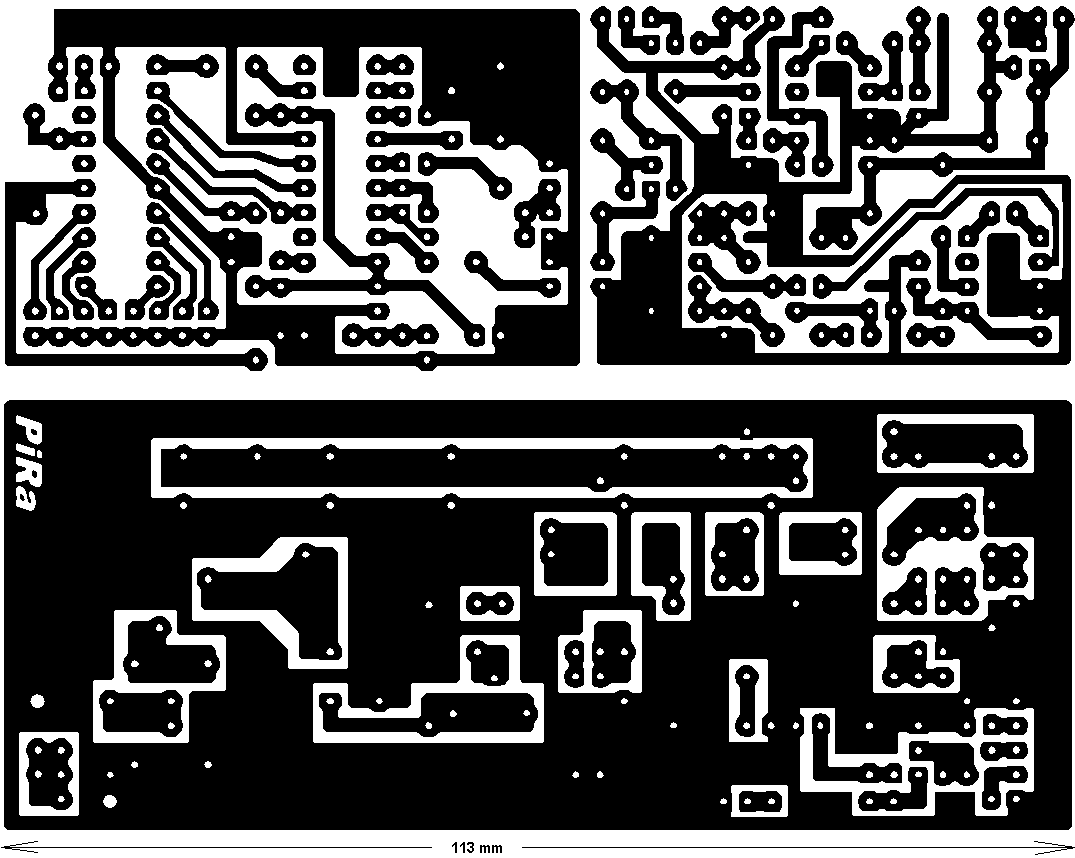

Printed circuit board

Connect corresponing pin numbers marked as Q. Use thin shielded cables. But for a power, S1, S51, Tl31 and D1+R36 supply use a pair of normal wires.

FB - ferrite bead
PR - wire-bridge
